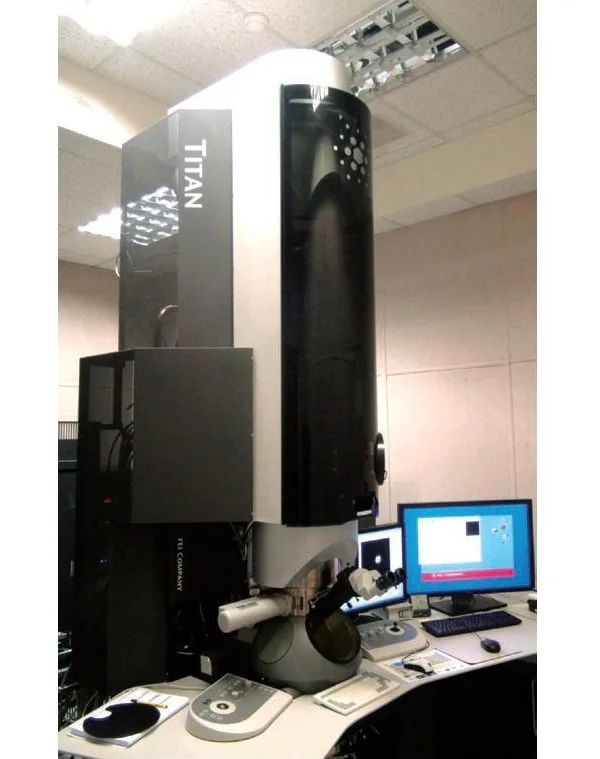

Titan
TEM ActiveThermo Fisher Scientific — Titan
Probe Cs-corrected S/TEM with monochromated X-FEG for atomic-resolution imaging and spectroscopy.
Voltage 80/200/300 kV
Gun X-FEG
Monochromator Mono (0.21 eV)
Pole-piece S-twin (5.4 mm)
Correction STEM (DCORR)
Camera Gatan OneView IS CMOS
EDS EDAX Elite-T Super
EELS Gatan Quantum 966 IS
Accessory Protochips AXON
On this page
Overview
The Thermo Fisher Scientific Titan is a probe Cs-corrected S/TEM equipped with a monochromated X-FEG electron source. It provides atomic-resolution STEM imaging and high-quality EELS spectroscopy, making it well-suited for detailed structural and chemical analysis of advanced materials.
Key Features
- Probe Cs-correction: Sub-ångström STEM imaging for atomic-column resolved analysis
- Monochromated X-FEG: 0.21 eV energy resolution for fine-structure EELS analysis
- Gatan OneView IS CMOS camera: High-speed, high-resolution TEM imaging with in situ capability
- Gatan Quantum 966 IS EELS: Dual-EELS acquisition for simultaneous core-loss and low-loss spectroscopy
- Protochips AXON: In situ heating and biasing experiments for real-time observation of dynamic processes
Applications
- Atomic-resolution STEM imaging of interfaces and grain boundaries
- EELS fine-structure analysis of electronic states and bonding
- In situ heating and biasing experiments on functional materials
- EDS elemental mapping at the nanoscale
